Products | TURBO JET FANS

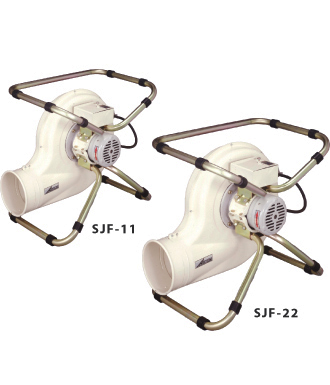

SJF-11
SJF-22
Features:
Easy to adjust airflow direction
Ideal for working at high static pressure
Applicable for long distance air blowing
Can be set for suction as well
Application:
What?
Can be used to disperse fumes or gases, ventilate confined spaces, or to cool workers or machinery working in high temperature environments with a strong air flow.
Where?
Suitable for large factories, warehouses,assembly lines, metal foundries, just to mention a few.

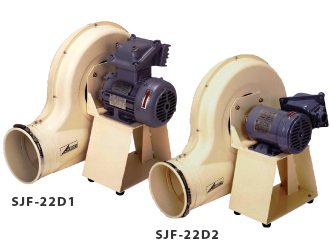

SJF-22D1
SJF-22D2
Explosion proof
Features:
Increased safety in explosion prone areas
For use in high-risk areas with explosive gases and chemicals.
Ideal for working at high static pressure
Applicable for long distance air blowing
Power cord included
Comes delivered with a 10m power cord with GND terminal.
Application:
What?
Please contact Suiden for further information. Go to the contact page by clicking here.
| Model | SJF-11 | SJF-22 | SJF-22D1 | SJF-22D2 | |
| Power supply | 100V | 3ph-200V | 3ph-200V | 3ph-200V | |
| Applicable duct diameter | 200mm | 200mm | |||
| Fan blade | Diameter | 300mm | 300mm | ||
| Quantity | 12 Blades | 12 Blades | |||
| Motor | Nominal output |
400W | 400W | ||
| Poles | 4P | 4P | |||
Power consumption 50/60Hz |
400/620W | 360/560W | N/A | N/A | |
| Rated current 50/60Hz | 5.6/7.3A | 1.6/2.1A | N/A | N/A | |
Max. air volume 50/60Hz |
21.5/24 m3/min | 21.5/24 m3/min | |||
Noise level |
N/A | N/A | |||
| Weight | 23.0kg | 37.5kg | 29.5kg | ||
| Dimensions W x D x H (mm) | 410 × 625 × 580 |
409 × 575 × 520 | 371 × 575 × 520 | ||
| Protective device | Overheat protection | No* | No* | ||
* This model does not have a protective device built into it, therefore make sure to connect it to an applicable motor breaker. Please use a 3ph-200V 2.5A motor breaker.
