CREATING COMFORT FOR YOUR WORKPLACE!
INDUSTRIAL FANS | Low oscillating fans for drying wet floors
SKF-45S-1V
Tray and swivel function
Features:
87° automatic swivel function
High durability
The air-tight motor blocks out damageing dust and particles, making the fan last for a long time.
Tray
Three speeds
Overheat protection
3 caster wheels with breaks
Application:
Where?
Suiden caster wheel fans are perfect for drying wet floors after washing, waxing or paint jobs.
SKF-45CD-1V
Swivel function
Features:
87° automatic swivel function
High durability
The air-tight motor blocks out damageing dust and particles, making the fan last for a long time.
Three speeds
Overheat protection
3 caster wheels with breaks

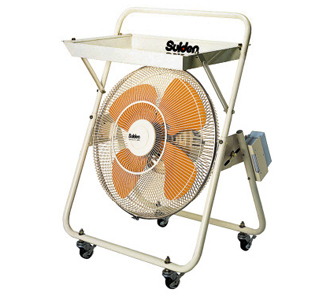

SKF-45C-1V
Tray
Features:
High durability
The air-tight motor blocks out damageing dust and particles, making the fan last for a long time.
Three speeds
Tray
Overheat protection
4 caster wheels with breaks

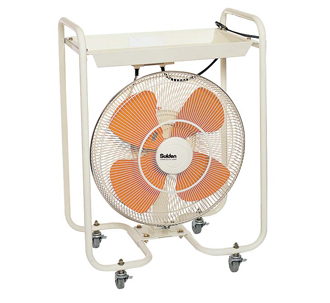

SKF-45KRII-1V
Tray and swivel function
Features:
87° automatic swivel function
High durability
The air-tight motor blocks out damageing dust and particles, making the fan last for a long time.
Tray
Three speeds
Overheat protection
4 caster wheels with breaks
| Model | SKF-45S-1V |
SKF-45CD-1V |
SKF-45C-1V | SKF-45KRII-1V | |
| Power supply | Single phase 100V | ||||
| Motor | Air-tight | Air-tight | Air-tight | Air-tight | |
| Fan blade diameter | 450mm | 450mm | 500mm | 600mm | |
Power consumption 50/50Hz (W) |
120/180W | 160/120W | 160/120W | 160/120W | |
| Frequency (Hz) | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |
| Speeds | 3 speeds | 3 speeds | 3 speeds | 3 speeds | |
| Max air volume (m³/ min) | 1 (Weakest) | 140/130 m³/ min | 180/165 m³/ min | 180/165 m³/ min | 180/165 m³/ min |
| 2 | 195/180 m³/ min | 200/210 m³/ min | 200/210 m³/ min | 200/210 m³/ min | |
| 3 (Strongest) | 215/245 m³/ min | 215/250 m³/ min | 215/250 m³/ min | 215/250 m³/ min | |
Swivel function |
Yes: 87° swivel | Yes: 87° swivel | No | Yes: 87° swivel | |
| Weight | 13.0kg | 15.5kg | 15.7kg | 21.0kg | |
| Dimensions H x W x D (mm) | H795×W565×D565 |
H750×W530×D530 | H830×W590×D590 | H830×W580×D580 | |
| Tray | Yes | No | Yes | Yes | |
*Design and specifications are subject to change without notice.
