CREATING COMFORT FOR YOUR WORKPLACE!
AIR CIRCULATION JET FAN | For greenhouses

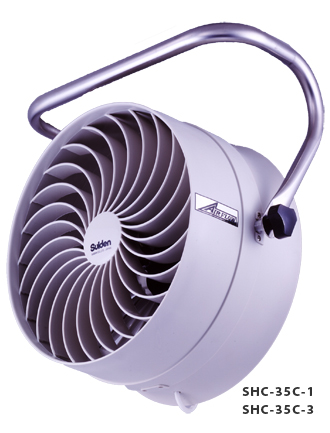

SHC-35C-1
SHC-35C-3
Features:
Relieves extreme heat during summer
Keeping the air in constant circulation evens out and prevents gatherings of hot stagnant air, and lowers the overall air temperature in the green house.
Improves effect of heating during winter
The effect of heating during winter is countered by warm air raising and gathering under the ceiling. When circulating the air the warm air is forced down again and creates an even temperature throughout the whole green house.
Prevents stagnated air and blight
Application:
Where?
Suiden air circulation jet fan is perfect for greenhouses or other facilities used for cultivation, and where good ventilation is crucial.
| Model | SHC-35C-1 | SHC-35C-1 | ||||
| Power supply | 100V | 3ph-200V | ||||
| Frequency | 50Hz | 60Hz | 50Hz | 60Hz | ||
| Operation | Weak | Strong | Weak | Strong | N/A | |
Power consumption |
52W | 70W | 64W | 86W | 71W | 86W |
| Rated current | 0.53A | 0.74A | 0.64A | 0.88A | 0.29A | 0.29A |
Max. air volume |
71m³/min | 78m³/min | 72m³/min | 88m³/min | 79m³/min | 90m³/min |
Noise level |
59.5dB | 61.5dB | 56.5dB | 62dB | 62dB | 65dB |
| Weight | 7.8kg | 7.7kg | ||||
| Power cable | 0.75mm²×3-core （2P plug with earth clip）, length: 2m | 0.75mm²×4-core、length: 2m | ||||
| Dimensions (mm) | W524 × D248 × H497 |
W524 × D248 × H497 | ||||
| Protective device | Overheat protection |
No* | ||||
* This models do not have a protective device built into it, therefore make sure to connect it to an applicable motor breaker.
