CREATING COMFORT FOR YOUR WORKPLACE!
EXHAUST JET FANS | Low energy consumption models

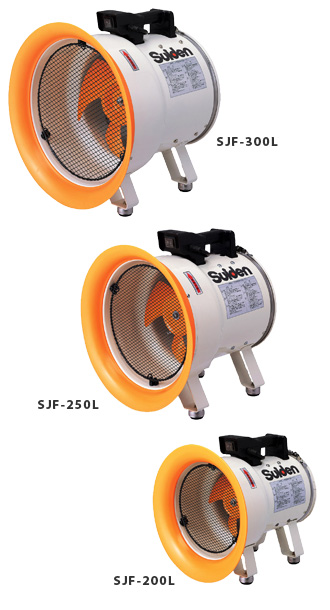

SJF-300L
Standard type
SJF-250L
SJF-200L
Mini type
Features:
Low power consumption
Here at Suiden we are dedicated to constantly making our products more cost efficient. In these models we have managed to reduce the power consumption with up to 44.7% compared previous models.
Powerful
High power in combination with low operating costs and sturdy, long lasting design gives you value for your money. All fans can be used both as exhaust fans and blowers.
Low noise
The bell-shaped mouth provides a stable airflow and low noise levels.
Safe
Suiden jet fans (Except for SJF-300L-3) are equipped with state of the art overheat prevention devices, guaranteeing safe operation.
Application:
What?
Jet fans are used in locations where there is a need to disperse fumes or gases, ventilate confined spaces, or to cool workers or machinery working in high temperature environments with a strong air flow.
Where?
Jet fans can be useful in a broad range of areas like in factories, warehouses, refineries, chemical plants, metal foundries, just to mention a few.
| Type | 200 Class (Mini type) | 250 Class | 300 Class (Standard type) | |||||
| Model | SJF-200L-1 | SJF-200L-2 | SJF-250L-1 | SJF-250L-2 | SJF-300L-1 | SJF-300L-2 | SJF-300L-3 | |
| Power supply | 100V | 1ph-200V | 100V | 1ph-200V | 100V | 1ph-200V | 3ph-200V | |
| Applicable duct dia. | 230mm | 280mm | 320mm | |||||
| Fan blade | Diameter | 200mm | 250mm | 288mm | ||||
| Qty. | 4 | 4 | 4 | |||||
| Motor | Nominal output | 100W | 200W | 400W | ||||
| Poles | 2P | 2P | 2P | |||||
Power consumption 50/60Hz |
100/115W | 160/185W | 345/435W | 345/400W | 300/390W | |||
| Rated current | 3A | 1.6A | 4.2A | 2.2A | 6.5A | 3.3A | 2.5A | |
Max. air volume 50/60Hz |
17/20 m3/min | 28/34 m3/min | 44/53 m3/min | |||||
Noise level 50/60Hz |
65 / 68 | 68.5 / 72 | 71 / 74.5 | |||||
| Weight | 8.7kg | 10.5kg | 14.5kg | |||||
| Dimensions (mm) | H360 × W382 × D380 |
H390 × W390 × D423 | H440 × W405 × D470 | |||||
| Protective device | Overheat protection | Overheat protection | Overheat protection | No* | ||||
* This model does not have a protective device built into it, therefore make sure to connect it to an applicable motor breaker. Please use a 3ph-200V 2.5A motor breaker.
