SJF-300D1

Axial flow fan



Features:

Increased safety in explosion prone areas
For use in high-risk areas with explosive gases and chemicals.

Power cord included
Comes delivered with a 10m power cord with GND terminal.

Application:

What?
Can safely handle gas or steam containing acetone, ammoniac, carbon monoxide, ethane, acetic acid, toluene, propane, benzene, methanol, methane, ethanol, l-butanol, i-butane, acetic anhydrate, gasoline, n-hexame, LP gas, acetaldehyde, city gas and ethyl ether.



suiden jet fans explosion proof

return to page top
explosion proof jet fans

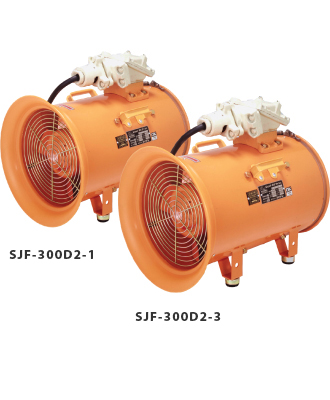

SJF-300D2

Axial flow fan

Features:

Increased safety in explosion prone areas
For use in high-risk areas with explosive gases and chemicals.

Power cord included
Comes delivered with a 10m power cord with GND terminal.

Application:

What?
Both models can safely handle gas or steam containing acetone, ammoniac, carbon monoxide, ethane, acetic acid, toluene, propane, benzene, methanol, methane, ethanol, l-butanol, butane, acetic anhydrate, gasoline, hexane. (SJF-300D2-1 can also handle coal gas, ethylene and ethylene oxide)

kj



return to top page

suiden explosion proof jet fans





SJF-22D1

SJF-22D2

Centrifugal turbo fan

Features:

Increased safety in explosion prone areas
For use in high-risk areas with explosive gases and chemicals.

Power cord included
Comes delivered with a 10m power cord with GND terminal.

Application:

What?
Please contact Suiden or our one of our distributors to learn more.


suiden explosion proof jet fans
Characteristics Industrial Explosion Proof Axial Jet Fans
Model SJF-300D1 SJF-300D2 SJF-22D1 * SJF-22D2 *
Type Axial flow fan Centrifugal turbo fan
Phase Single phase or 3 phase Single phase or 3 phase 3 phase
Applicable duct dia. 320mm (Explosion Proof Type) 200mm
Fan blade Diameter 288mm 288mm 300mm
Quantity 6 Blades 6 Blades 12 Blades
Motor

Nominaloutput

550W 400W 400W
Poles 2 2 4

Power consumption

392 W 460 W N/A
Rated current 5.6 A 7.0 A N/A

Max. air volume

48 m³/min 52 m³/min 21.5 m³/min

Noise level

82.5 dB N/A N/A
Weight 27.5 kg 29.5 kg 37.5 kg 29.5 kg
Dimensions H x W x D

396 × 320 × 492

455 × 390 × 471 409 × 575 × 520 371 × 575 × 520
Protective device This models do not have a protective device built into it, therefore make sure to connect it to an applicable motor breaker. Please use a 3ph-200V 2.5A motor breaker.

* SJF-22D1 is safe against a wider range of explosive gases than SJF-22D2. Please consult us to learn which models suits your needs the best.
