Work In Comfort
Products | In-Line Axial Fans

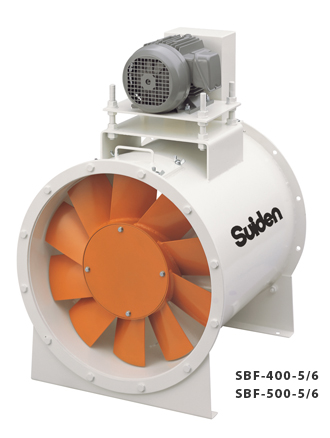

SBF-400
SBF-500
Features:
In-line fans for larger duct systems
With the engine separated from the fan itself, and the ability to connect to ducts on both sides, these Suiden in-line axial fans are perfect for boosting the airflow in longer duct systems.
High durability
Because the damaging air that flows through this axial fan does not affect the in-line fan motor, it will maintain high performance for a longer time than ordinary fans.
Easy installation and maintenance
Application:
In-line jet fans have a wide of possible use, including:
- Boosting airflow in longer duct systems
- Temperature control within the duct sytem
- Moist level control withing the duct system
| Model | SBF-400 | SBF-500 | |
| Fan blade | Diameter | 400mm | 490mm |
| Qty. | 8 | 6 | |
| Power supply | 3 phase 200V | 3 phase 200V | |
| Motor | Nominal output | 400W | 750W |
| Poles | 4P | 4P | |
Power consumption(50Hz) |
493 W | 750 W | |
Max. air volum(50Hz) |
60 m³/min | 120 m³/min | |
| Weight | 37 kg | 50 kg | |
| Dimensions (mm) | W: 490 × D: 350 × H: 670 |
W: 580 × D: 350 × H: 785 | |
| Protective device | This models do not have a protective device built into it, therefore make sure to connect it to an applicable motor breaker. | ||
*Design and specifications are subject to change without notice.
