MANUAL FILTER CLEANING

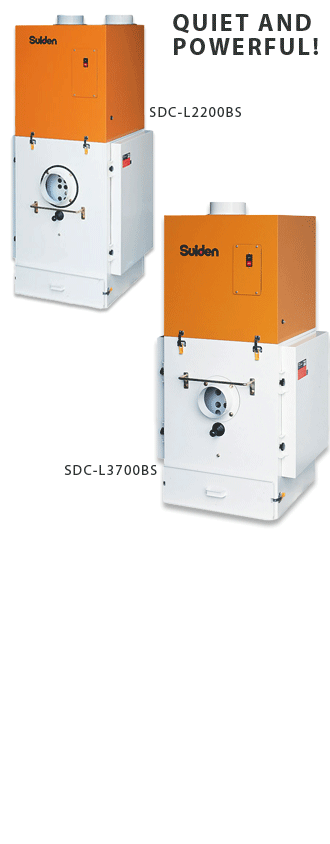

SDC-L2200BS
SDC-L3700BS
Powerful Heavy Duty Dust Collectors
Working in in environments with much dispersion of dust into the air is proven to contribute to causing many lung and respiratory deceises. These workplaces include factories where drilling, sawing, grinding is being conducted, as well as flour and cement factories and warehouses. Suiden´s dust collectors are vert suitable to improve the work environment in such work places, removing the dangerous dust immediately at the source, which will improve the health of your workers and minimize the risk of accidents.
Easy maintenance cartridge filters
Cartridge-type filters make maintenance and replacement extremely easy. Avoid clogging by just a couple of turns with the dust shaking lever on the side.
Quiet design
Get all the benefits of powerful dust collectors, but without the high noise level. Suiden dust collectors apply a special low noise design, making operation more pleasant.
Large dust collecting capacity and easy disposal
Suiden dust collectors in this series are equipped to handle large amount of dust before the dust box needs to be emptied.
Compact design
Suiden dust collectors are not only compact and extremely space efficient, they are also very easy to use with all control parts concentrated on the front side.
Accessories
Please also check out our Suiden Dust Collector Accessories. You can also increase the suction power by attaching a Dust Collector Cyclone Separator.
Here you might need a Suiden Dust Collector
-
In work processes involving sawing, drilling and grinding
-
In places that handle flour, cement or other powders
-
In places with dust that is harmful to the health
-
In manufacturing processes sensitive to dust particles
-
Where visibility is obstructed by dust, leading to accidents
Model | SDC-L2200BS | SDC-L3700BS | |
Horse power | 3 Horse powers | 5 Horse powers | |
Motor | Nominal output | 2200 W | 3700 W |
Poles | 2 P | 2 P | |
Suction pipe diameter | 150 mm | 200 mm | |
Dust box capacity |
39 L | 55 L | |
Filters (Quantity) | 4 pcs | 6 pcs | |
Max. suction air volume (m³/min) |
22 | 37 | |
Max. static pressure (Pa) |
2157 Pa | 2648 Pa | |
Noise level (dB) |
61.7 dB | 63.1 dB | |
Dimensions (H x W x D) | 1500 x 750 x 770 | 1910 x 830 x 850 | |
Weight | 139 kg | 160 kg |
*Design and specifications are subject to change without notice.
