Suiden Industrial Pressure Ventilation Wall Fans

EXPLOSION PROOF MODELS

SCF-40D1 / D2

SCF-50D1 / D2

SCF-60D1 / D2

SCF-75D1 / D2

SCF-90D1 / D2

Wall Fan Features:

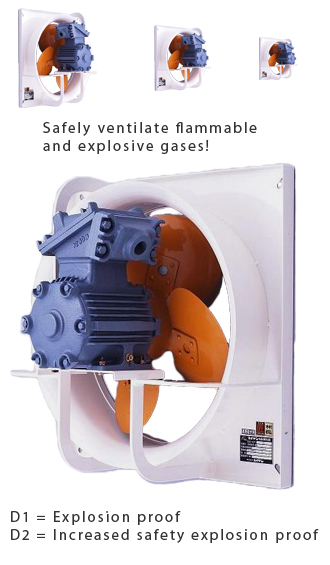

Explosion proof pressure wall fan
With these safe explosion proof fans you can securely ventilate facilities that handles explosive or flammable gas.

State-of-the-art ventilation technology
With Suiden pressure wall fans you can ventilate large as well as small facilities, and they are very effective against gases that are usually difficult to ventilate.

Large variety of wall fan sizes
Explosion proof pressure wall fans from Suiden are available in 5 sizes from 40cm to 90cm to fit your specific need.

Fan accessories available
Suiden pressure wall fans can be equipped with fan shutters, protective screen covers and outside air port (Sold separately). Click here to see those accessories.

Low noise design

Wall Fan Applications:

Where?
Suiden explosion proof wall-type pressure fans are perfect for ventilation of explosive or flammable gases, where high safety is the main priority. Suitable for chemical factories, refineries, plants etc.

suiden pressure ventilation wall fans - explosion proof fan

Model		SCF-40D1	SCF-40D2	SCF-50D1	SCF-50D2
Weight		26.5 kg	16 kg	43 kg	27 kg
Speeds		1 Speed		1 speed
Fan blade diameter		40 cm		50 cm
Motor	Nominal output	200 W		400 W
	Poles	4P		6P
Air volume (m³/min)		61 m³/min		109 m³/min
Noise level (dB) (Measured 1.5 m from air exhaust port)		59.5 dB		54.5 dB

Model		SCF-60D1	SCF-60D2	SCF-75D1	SCF-75D2	SCF-90D1	SCF-90D1
Weight		53 kg	36 kg	67.5 kg	53.5 kg	95 kg	70 kg
Speeds		1 speed		1 speed		1 speed
Fan blade diameter		60 cm		75 cm		95 cm
Motor	Nominal output	750 W		1500 W		2200 W
	Poles	6P		6P		6P
Air volume (m³/min)		150 m³/min		240 m³/min		390 m³/min
Noise level (dB) (Measured 1.5 m from air exhaust port)		63 dB		71.5 dB		73 dB
