Work In Comfort
PRESSURE VENTILATION WALL FANS | Stainless steel series
SCF-25DA1-SUS
SCF-30DB1-SUS
SCF-35DC1-SUS
SCF-40DD3-SUS
SCF-50FF3-SUS
Wall Fan Features:
Corrosion resistant wall fans

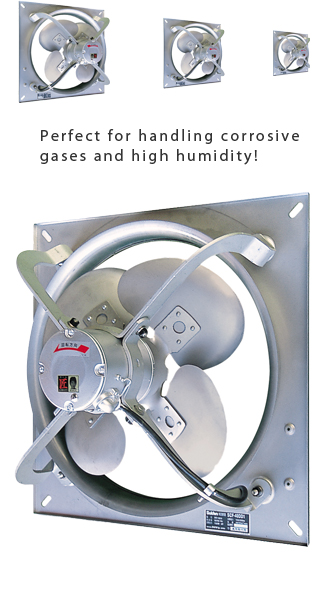

Suiden corrosion resistant axial fans are made of stainless steel, making them strong to withstand high humidity and corrosive gases.
State-of-the-art ventilation technology
With Suiden pressure wall fans you can ventilate large as well as small facilities, and they are very effective against gases that are usually difficult to ventilate.
Large variety of pressure wall fan sizes
Pressure wall fans in the stainless steel series are available in 5 sizes from 25cm to 50cm to fit your specific need.
Fan accessories available
Suiden pressure wall and axial fans can be equipped with fan shutters, protective screen covers and outside air port (Sold separately). See Stainless Steel Wall Fan Accessories here!
Low noise design
Wall Fan Applications:
Where?
Suiden stainless steel-made pressure ventilation fans are suitable for ventilation of corrosive gases or in environments with high humidity. Suitable for factories, warehouses, plants, construction sites, public facilities and larger stores, just to mention a few.
| Model | SCF-25DA1-SUS | SCF-30DB1-SUS | SCF-35DC1-SUS | |
| Speeds | 1 Speed | |||
| Fan blade diameter | 25 cm | 30 cm | 35 cm | |
| Motor | Nominal output | 30 W | 60 W | 100 W |
| Poles | 4P | |||
| Air volume (m³/min) (50/60Hz) | 18 m³/min | 25 m³/min | 37 m³/min | |
| Weight | 5.7 kg | 7.0 kg | 9.5 kg | |
| Model | SCF-40DD1-SUS | SCF-40DD3-SUS | SCF-50FF3-SUS | |
| Speeds | 1 Speed | |||
| Fan blade diameter | 150 cm | 200 cm | 400 cm | |
| Motor | Nominal output | 30 W | 60 W | 100 W |
| Poles | 4P | 6P | ||
| Air volume (m³/min) | 49 m³/min | 61 m³/min | 109 m³/min | |
| Weight | 11.5 kg | 11.4 kg | 20 kg | |
