CORROSION RESISTANT FANS
CREANDO CONFORT PARA SU LUGAR DE TRABAJO!
Productos: CORROSION RESISTANT ROOF FANS
SRF-R40FC
SRF-R50FC
SRF-R60FC
SRF-R75FC
SRF-R90FC

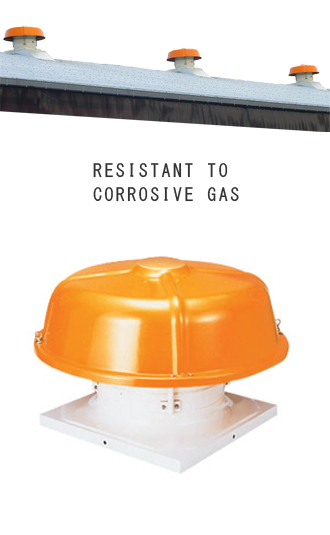

Roof Fan Features:
Corrosion resistant fan and dome
The dome is made of corrosion resistant FRP material, and the fan and body are also made to withstand corrosive gases and high humidity.
Low noise fan shape
Suiden roof ventilation fans are designed with bell mouthed shape to prevent them from producing "BB" noise due to vibration of the fan air inlet mouth.
Rain proof
The fan body utilizes outwards edges, blocking any rainwater brought in by the wind that is not blocked by the dome.
Roof Fan Applications:
Where?
Suiden corrosive resistant rooftop fans are suitable for ventilation of large facilities with high exposure to corrosive gases or high humidity:
- Warehouse ventilation
- Factory ventilation etc.
| Model | SRF-R40FC | SRF-R50FC | SRF-R60FC | SRF-R75FC | SRF-R90FC | ||||||
| Power supply | 3ph-200V | ||||||||||
| Fan blade | Diameter | 400mm | 500mm | 600mm | 735mm | 890mm | |||||
| Qty. | 4 Fan blades | ||||||||||
| Motor | Nominal output | 200W | 400W | 750W | 1500W | 2200W | |||||
| Poles | 4P | 6P | |||||||||
| Rated current (A) | 1.1/1.2A | 2.2/2.5A | 4.0/4.2A | 7.0/7.8A | 9.5/10.0A | ||||||
| Weight | 27.0kg | 39.5kg | 59.5kg | 89.5kg | 133.0kg | ||||||
Frequency |
50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |
Noise level (dB) |
Air intake port (1.5m) | 76 | 79 | 69 | 74 | 73 | 77 | 80 | 81 | 84 | 88 |
| Air exhaust port (1.5m) | 65 | 68 | 61 | 64 | 67 | 69 | 71 | 74 | 75 | 80 | |
| Air volume (m³/min) at various static pressure* | 0Pa | 62 | 69 | 110 | 121 | 154 | 178 | 280 | 310 | 420 | 480 |
| 20Pa | 55 | 65 | 103 | 107 | 145 | 167 | 260 | 284 | 392 | 455 | |
| 40Pa | 50 | 62 | 93 | 100 | 137 | 160 | 245 | 270 | 377 | 441 | |
| 60Pa | 43 | 57 | 67 | 93 | 129 | 151 | 225 | 255 | 372 | 431 | |
| 80Pa | 37 | 52 | 52 | 85 | 120 | 143 | 205 | 245 | 367 | 421 | |
| 100Pa | 30 | 45 | 40 | 73 | 110 | 133 | 186 | 235 | 343 | 411 | |
| 120Pa | 23 | 38 | 29 | 56 | 99 | 122 | 166 | 225 | 333 | 402 | |
* The static pressure is shown in Pascal. 1Pa = 0.10197mmAq.
