Work In Comfort
INDUSTRIAL FANS | Wall type models

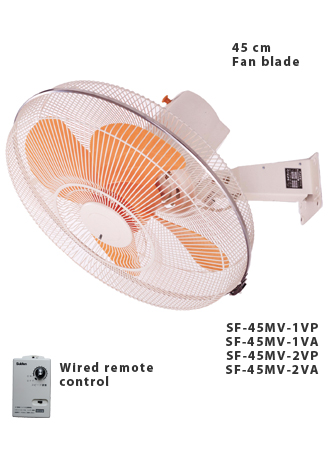

SF-45MV-2VP
Plastic fan blade
SF-45MV-2VA
Aluminum fan blade
Features:
High durability
The air-tight motor blocks out damaging dust and particles, making the fan last for a long time.
90° adjustable vertically angle
Gives you the freedom to direct the airflow of the wall fan in the direction you require.
45 cm aluminum or plastic fan blades
You can choose between highly durable aluminum fan blades or quiet plastic fan blades.
Fan overheat protection
Stepless speed adjustment
Application:
Where?
Suiden wall fans can be used in factories, warehouses, assembly lines, offices and any other place with need for air circulation. Does not take up space on the floor, making it perfect for cramped facilities.

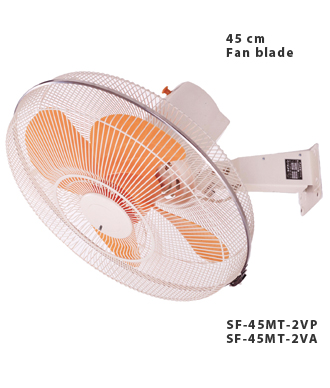

SF-45MT-2VP
Plastic fan blade
SF-45MT-2VA
Aluminum fan blade
Features:
High durability
The air-tight motor blocks out damaging dust and particles, making the fan last for a long time.
90° adjustable vertically angle
Gives you the freedom to direct the airflow in the direction you require.
Fan overheat protection
The motor will stop automatically in case of abnormal temperature.
45 cm aluminum or plastic fan blades
You can choose between highly durable aluminum fan blades and quiet plastic fan blades.
SF-50FN-2V
50 cm fan blade
SF-60FN-2V
60 cm fan blade
Features:
50 or 60 cm fan blades
These large size wall fans give a powerful airflow, making them suitable for facilities with demanding needs.
High durability
The air-tight motor blocks out damaging dust and particles, making the fan last for a long time.
90° adjustable vertically angle
Gives you the freedom to direct the airflow in the direction you require.
Fan overheat protection
The motor will stop automatically in case of abnormal temperature.

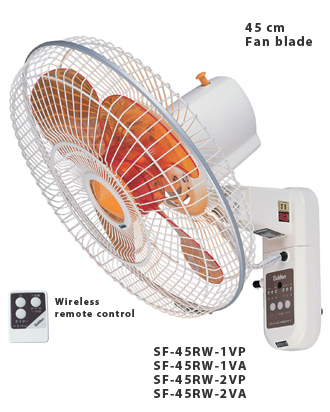

SF-45RW-2VP
Plastic fan blade
SF-45RW-2VA
Aluminum fan blade
Features:
Equipped with wireless remote control
For optimal convenience you can control this Suiden wall fan from anywhere in the room.
45° adjustable vertically angle
Gives you the freedom to direct the airflow in the direction you require. Great office fan.
Fan overheat protection
The motor will stop automatically in case of abnormal temperature.
45 cm aluminum or plastic fan blades
You can choose between highly durable aluminum fan blades and quiet plastic fan blades.
Timer function
| Model | SF-45MV-2V |
SF-45MT-2V |
SF-50VS-1VP | SF-60VS-1VP | SF-45RW-2V |
|
| Motor | Air-tight | Air-tight | Air-tight | Air-tight | Air-tight | |
| Fan blade | Diameter | 450mm | 450mm | 500mm | 600mm | 450mm |
| Material | Plastic or Aluminum | Plastic or Aluminum | Aluminum | Aluminum | Plastic or Aluminum | |
Safety devices |
Powder paint finish | Yes | Yes | Yes | Yes | Yes |
| Fixation ring | Yes | Yes | Yes | No | Yes | |
| Fine grid fan cover | Yes | Yes | Yes | Yes | No | |
Power consumption |
120 W | 105 W | 290 W | 420 W | 120 W | |
| Max air speed | 405 m/min | 405 m/min | 470 m/min | 490 m/min | 405 m/min | |
| Max air volume | 215 m³/min | 215 m³/min | 312 m³/min | 410 m³/min | 215 m³/min | |
Swivel function |
Yes: 87° swivel | Yes: 87° swivel | Yes: 87° swivel | Yes: 87° swivel | Yes: 87° swivel | |
| Speeds | Stepless speed control | 2 speeds | 1 speed | 1 speed | 3 speeds + rythm | |
| Power switch on unit | No, see note* | Yes | Yes | Yes | Yes | |
| Remote control | Yes: wired | No | No | No | Yes: wireless | |
| Electric cord | See note* | 1.9m | 2.0m | 2.0m | 1.8m | |
| Weight | 9.3 kg | 9.5 kg | 17.0 kg | 20.0 kg | 9.0 kg | |
| Dimensions (mm) | H: 580 W: 515 D: 315 |
H: 580 W: 515 D: 315 |
H: 610 W: 560 D: 370 |
H: 703 W: 685 D: 440 |
H: 620 W: 515 D: 375 |
|
* These wall fans come with a 1.8m electric cord (Attached to unit), an 8m extension cord, a remote speed controller and further 2m electric cord.
